THERMOFORMER FORMLINE

Back
THERMOFORMER FORMLINE

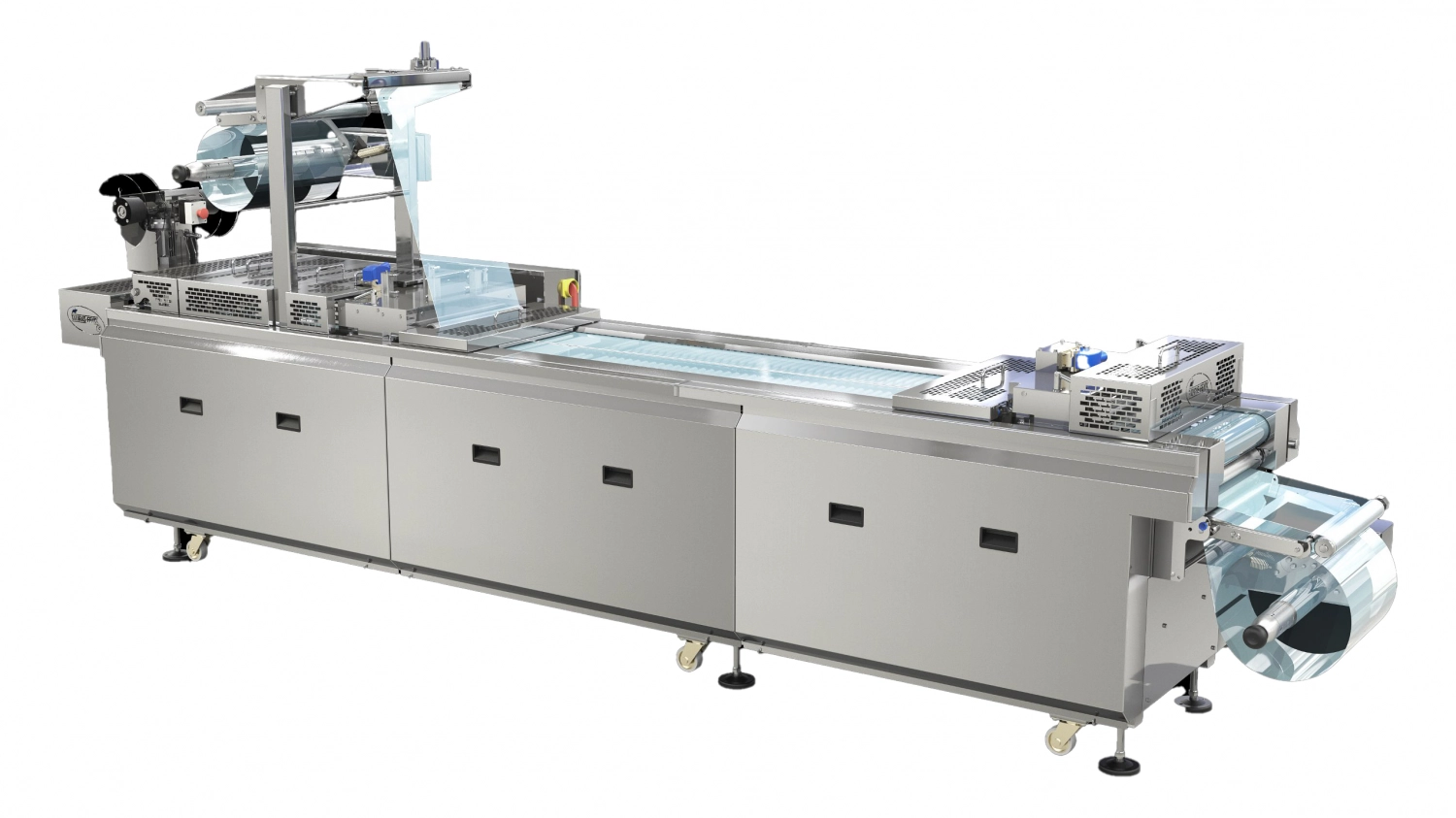

The FORMline thermoformer by TAURAS-FENIX is a horizontal form-fill-seal packaging machine designed for forming trays from roll film and sealing pre-filled products with a top film. The machine delivers high productivity, precise forming quality ...

Details
Video
Get a consultation
DESCRIPTION Standard accessories Optional

The FORMline thermoformer by TAURAS-FENIX is a horizontal form-fill-seal packaging machine designed for forming trays from roll film and sealing pre-filled products with a top film. The machine delivers high productivity, precise forming quality and full compliance with food industry hygiene standards.

Applications

The thermoformer is used for packaging meat, fish, ready meals, desserts, cheeses and semi-prepared foods in trays with top sealing. The machine supports vacuum packaging and modified atmosphere packaging (MAP), which helps preserve freshness and extend product shelf life. Hermetic sealing without vacuum is also available.

Operating principle

The machine forms trays from the bottom roll of film, after which products are loaded into the formed cavities. The top film is then applied and sealed; if required, vacuum is created or a gas mixture is injected (MAP). At the end of the cycle, the machine performs cutting and separation of the finished packs, ensuring clean and accurate edge trimming.

Advantages

High performance
Easy to use
Small size
Easy to maintain
maintenance
Quick changeover to other
format parts
Vacuuming and filling
Gas filling for extended product shelf life
Speed, cycle/min.
 7
 Depends on the number of
 trays formed per cycle
 Maximum height of trays, mm
 110
 Maximum tray size, mm
 389х300
 Installed power, kW
 11
 Compressed air consumption l/min
 500
 Machine weight, kg
 1800
 Overall dimensions, mm
4800x1100x2000
  • Bottom film unwinding unit
  • Hot forming mold
  • Formed cavity of the loading area
  • Upper film unwinding unit
  • Sealing mold
  • Tray cutting-separation
  • Date stamping
  • Interchangeable format parts
  • Special trimming types
  • Die-cut holes: Euro slot, triangle
  • Tongue for easy opening
